This is an Inertial Sensor Unit equipped with triple axes gyroscopes and triple axes accelerometers, designed to output temperature compensated angular rate and acceleration via high speed serial lines
It also facilitates optional calculations, such as attitude, speed, angle, with the use of external data.

Applications

･Motion Guidance Control ･Platform stabilizer Control ･Navigation ･Inertial Measurement
･Camera Image Control ･Robotics ･Machine Tool

Features

  • Small/Lightweight/Low Power Consumption
  • Small Piezoelectric Gyro and Silicon Accelerometer
  • High-accuracy Gyro/Accelerometer
  • High Data Output Rate (200Hz)
  • Superior Environmental Resistance (Vibration/Shock)
  • Wide Temperature Range (-40°C∼85°C) (compensated by built-in temperature sensor)
  • Self Check Mechanism (Fault Detection Coverage: 95%)
  • Low Price

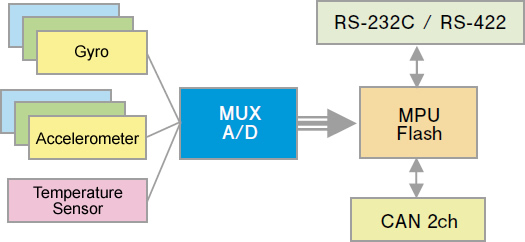

Function Block Diagram

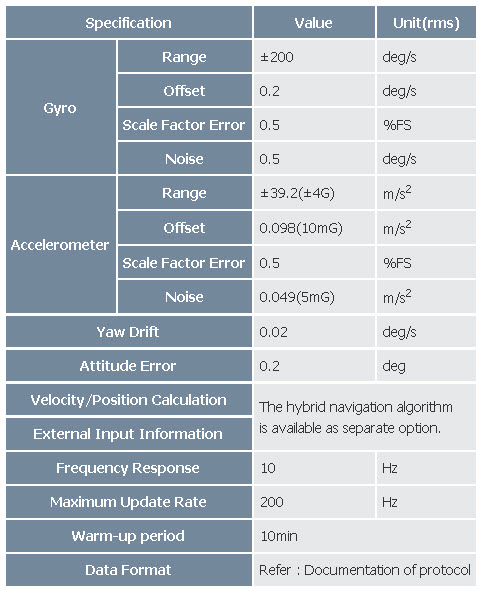

Performance Specification

After the offset cancellation, less than 5 minutes.

Environmental Condition

I/O
